SPECIFICATIONS

Brand Name: XUANFENG

Model Number: XF-943

Package: YES

Bearing: Fluid Bearing

Blade Quantity: 7

Series: XF

Power Interface: 3pin/4pin

Cooler Type: Tower

Origin: Mainland China

Supported CPU: LGA 2011

Supported CPU: LGA 2011-3

Supported CPU: LGA 2066

Lines: 3Pin or 4Pin

Fan Life: 50000 hrs

Air Volume: 60

TDP: 120

Heatpipes: 4

Noise: 25dBA

Fan Size: 90

Fan Speed: 800 - 2000

Choice: yes

semi_Choice: yes

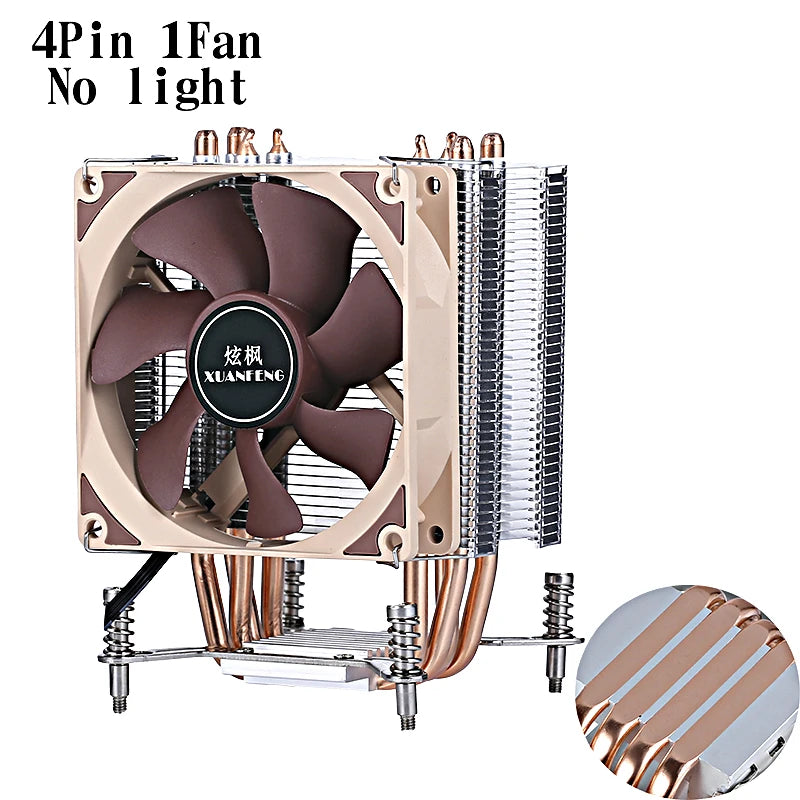

Product brand: XUANFENG

Product name: CPU cooler fan

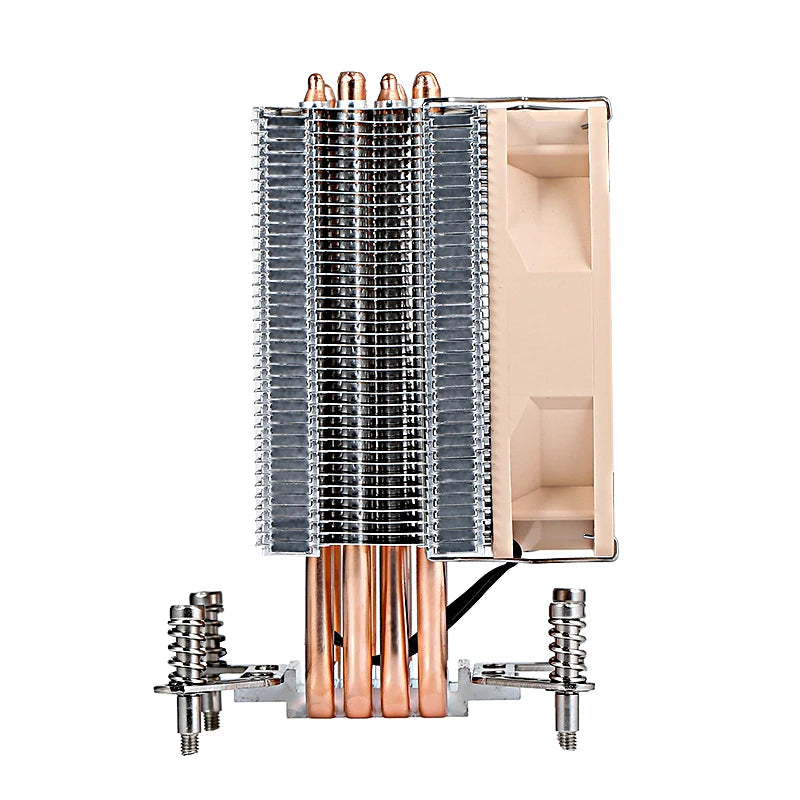

Product size: 90 (length) * 72 (width) * 140 (height) mm

Fan size: 90 * 90 * 25mm

Heat pipe specification: 6mm * 4 pieces

3-wire speed: 2000 RPM ± 10%

4-wire speed: 800-2000 RPM ± 10%

3-wire current: 0.18A without lamp, 0.28A with lamp ± 10%

4-wire current: 0.1A without lamp, 0.2A with lamp ± 10%

3-wire power: 2W without light, 3.5W with light ± 10%

4-wire power: 1W without light, 2.5W with light ± 10%

Noise control: 25dBA

Air volume: 60CFM (maximum)

(The above data is for one fan. If there are multiple fans (air volume, noise, current, power), the data will increase.)

Fan bearings: hydraulic bearings

Working voltage: DC 12V

Process materials: copper and aluminum

Working life: 50000 hours

Fan interface: 3Pin (3-wire constant speed)/4Pin (4-wire temperature control)

Fan wire length: 30CM ± 10%

Packaging method: boxed

Pure aluminum base combined with 4 pure copper heat pipes for efficient heat dissipation. Solve high temperature issues and make your computer smoother. Super silent fan. Hydraulic bearings reduce friction resistance and effectively reduce noise. Multi platform design, easy installation.

Note:

Due to manual measurement, different measurement methods and tools, there may be slight dimensional deviations.

Due to differences in lighting, angle, and display, images may not reflect the actual color of the item

The following is an installation tutorial video for this product, hoping to be helpful to you. The products installed in the video are for reference only, but the installation method is the same.

The following is a tutorial on installing a CPU cooling fan. The product in the picture may be different from the one you purchased, but the installation method is the same.

1. As shown in the figure, it is suitable to install motherboards with built-in threads, such as LGA: 2011, X79, X99, 2099, X299, E3, E5. 2066, etc.

2. As shown in the figure, open the thermal conductive silicone grease and apply it evenly on the surface of the CPU.

3. As shown in the figure, peel off the protective film at the bottom of the radiator

4. As shown in the figure, the screw can be freely moved and adjusted.

5. As shown in the figure, gently push the fan inward to leave space and place a screwdriver tool for installation.

6. As shown in the figure, use the characteristic of screw movement to align the screw with the threads on the motherboard, and then use tools such as screwdrivers to tighten and install.

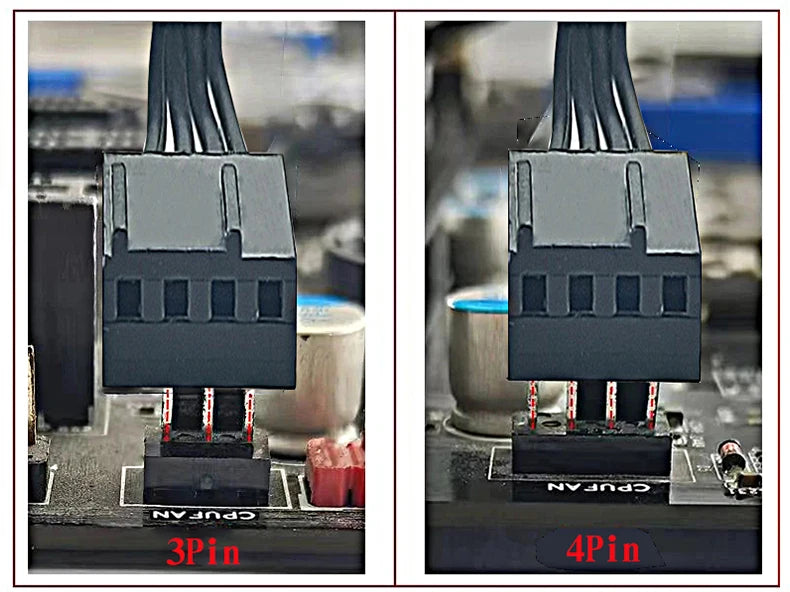

7. As shown in the figure, the interface CPUFAN, there is no need to worry about different interfaces. 3Pin/4Pin universal.

8. As shown in the figure, the blue arrow represents the air inlet, and the red arrow represents the air outlet.

9. As shown in the figure, the installation is completed.

Regarding the selection of interface types

3Pin or 4Pin interfaces are universal and can be installed without worrying about interface types

Fixed speed type: 3-pin fan, fixed speed, large air volume, good heat dissipation, but there may be relatively slight wind noise

Temperature control board: The 4Pin fan will intelligently adjust the fan speed based on the current CPU temperature, which is energy-saving and silent. Extend service life! (The motherboard needs to support and enable PWM speed regulation function, which is basically available on all motherboards)
